An even faster way than StackWalker API for asynchronously processing the stack frames

(Last Updated On: 13th June 2018)

Context

StackWalker API has been introduced in JDK 9 as part of JEP 259. It targets a flexible mechanism to traverse and materialize the required stack frames allowing efficient lazy access to additional stack frames when required.

Before this API (i.e. until JDK 9), there were a few other options to traverse the thread’s stack, as follows:

  • Throwable::getStackTrace or Thread::getStackTrace which returns an array of StackTraceElement[] objects
  • SecurityManager::getClassContext which allows a SecurityManager subclass to access the class context as well

However, they have the disadvantage of eagerly capturing the entire stack (i.e. all stack frames) since the API does not allow to filter nor to return only a subset of the frames in case the caller might be interested in only a few.

StackWalker API solves these issues by providing:

  • lazy frames construction
  • limits stack depth
  • filters frames

Motivation

In this context, the current article aims to test the performance between Thread::getStackTrace vs. StackWalker API. Besides that, it goes further by revealing a performance trick which outperforms the StackWalker API, suitable for cases when Throwable frames can be asynchronously processed.

StackWalker vs. Thread::getStackTrace

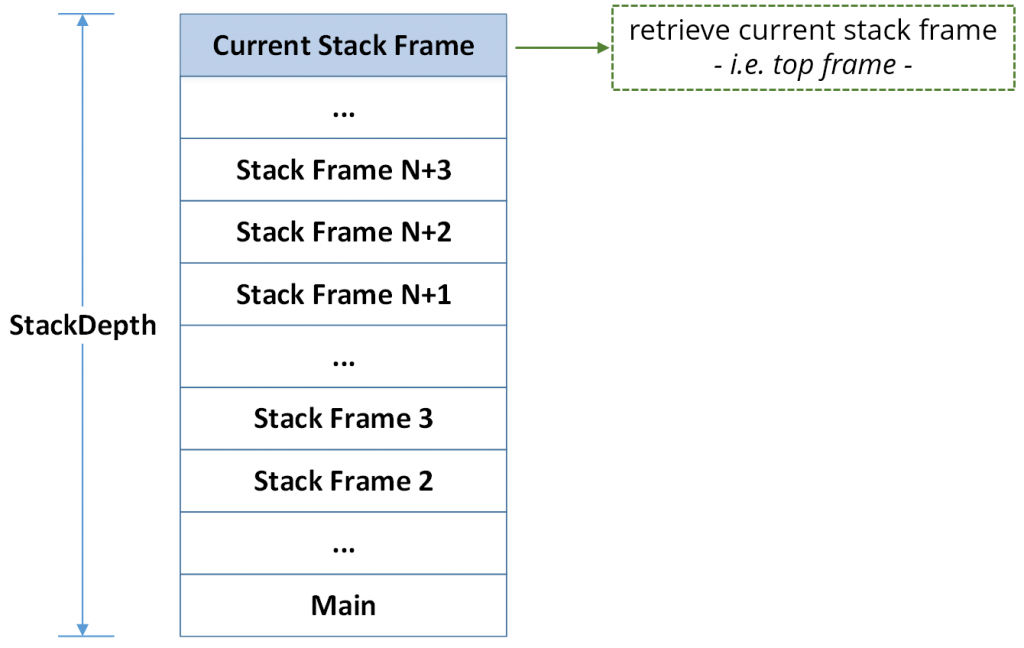

Let’s first try to write a small benchmark which measures the performance of getting the current thread stack frame out of a recursive call when it reaches a specific stack depth. Roughly, it looks like this:

At this stage we are interested only in the top / current stack frame and not all the others, since we would like to spot the efficiency between the lazy mechanism of building the frames one by one (on demand, using StackWalker API) and the cost of eagerly fetching all of them using Thread::getStackTrace API, even if just one is a matter of interest.

@BenchmarkMode(Mode.AverageTime)
@OutputTimeUnit(TimeUnit.NANOSECONDS)
@Warmup(iterations = 5, timeUnit = TimeUnit.NANOSECONDS)
@Measurement(iterations = 5, timeUnit = TimeUnit.NANOSECONDS)
@Fork(value = 3, warmups = 1)
@State(Scope.Benchmark)
public class StackWalkerJmh {

    @Param({ "1", "10", "100", "1000" })
    int stackDepth;

    public static void main(String[] args) throws RunnerException {
        Options opt = new OptionsBuilder()
            .include(StackWalkerJmh.class.getName())
            .build();
        new Runner(opt).run();
    }

    // StackWalker API

    @Benchmark
    public StackWalker.StackFrame stackWalker() {
        // return top StackFrame
        return recStackWalker(stackDepth);
    }

    private StackWalker.StackFrame recStackWalker(int depth) {
        if (depth == 0) {
            return getCurrentStackFrame_StackWalker();
        }
        return recStackWalker(depth - 1);
    }

    private StackWalker.StackFrame getCurrentStackFrame_StackWalker() {
        return StackWalker.getInstance()
                .walk(stream -> stream.findFirst())
                .orElseThrow(NoSuchElementException::new);
    }

    // Thread::getStackTrace

    @Benchmark
    public StackTraceElement getStackTrace() {
        // return top StackTraceElement
        return recGetStackTrace(stackDepth);
    }

    private StackTraceElement recGetStackTrace(int depth) {
        if (depth == 0) {
            return getCurrentStackFrame_GetStackTrace();
        }
        return recGetStackTrace(depth - 1);
    }

    private StackTraceElement getCurrentStackFrame_GetStackTrace() {
        StackTraceElement[] stackTrace = Thread.currentThread().getStackTrace();
        return Arrays.stream(stackTrace)
                .findFirst()
                .orElseThrow(NoSuchElementException::new);
    }
}

I have tested above benchmark with JDK9.

Benchmark     (stackDepth)     Mode    Cnt        Score    Error     Units

stackWalker             1      avgt     15     2,024.159 ± 116.055    ns/op
stackWalker            10      avgt     15     2,021.072 ± 35.285     ns/op
stackWalker           100      avgt     15     2,187.201 ± 47.090     ns/op
stackWalker          1000      avgt     15     4,528.044 ± 424.802    ns/op

getStackTrace           1      avgt     15    15,929.591 ± 2783.794   ns/op
getStackTrace          10      avgt     15    20,823.695 ± 380.626    ns/op
getStackTrace         100      avgt     15    73,061.360 ± 7668.810   ns/op
getStackTrace        1000      avgt     15   552,057.694 ± 31763.305  ns/op

Tests triggered on my machine (CPU: Intel i7-6700HQ Skylake; MEMORY: 16GB DDR4 2133 MHz; OS: Ubuntu 16.04.2)

Conclusions after this test scenario:
  • StackWalker offers almost constant access time to current top frame for different stack depth sizes (e.g. 1, 10, 100, 1000)
    • NB: However, this cost might increase while walking through more and more frames
  • Thread::getStackTrace cost seems proportional to the stack depth and is around one order of magnitude or even slower in comparison to StackWalker API, since getStackTrace has to always fill in the entire stack trace and converts it to a Java representation, even if only a few frames are inspected

Is there any way to be faster than StackWalker API?

Maybe … let’s try the following approach: let’s asynchronously process (i.e. in another thread) Throwable frames generated by the Throwable::new and compare this with the synchronous StackWalker API.

In case of StackWalker API, the frames cannot be asynchronously processed! When StackWalker API collects the stack frames from a running thread, it first pauses the thread, collects the stack and then resumes the thread. The stream of frames cannot be returned and walked later on within another thread, it needs to be synchronous to invoking thread in order to lazily get information about the stack traces, otherwise, the stack would be in an inconsistent state.

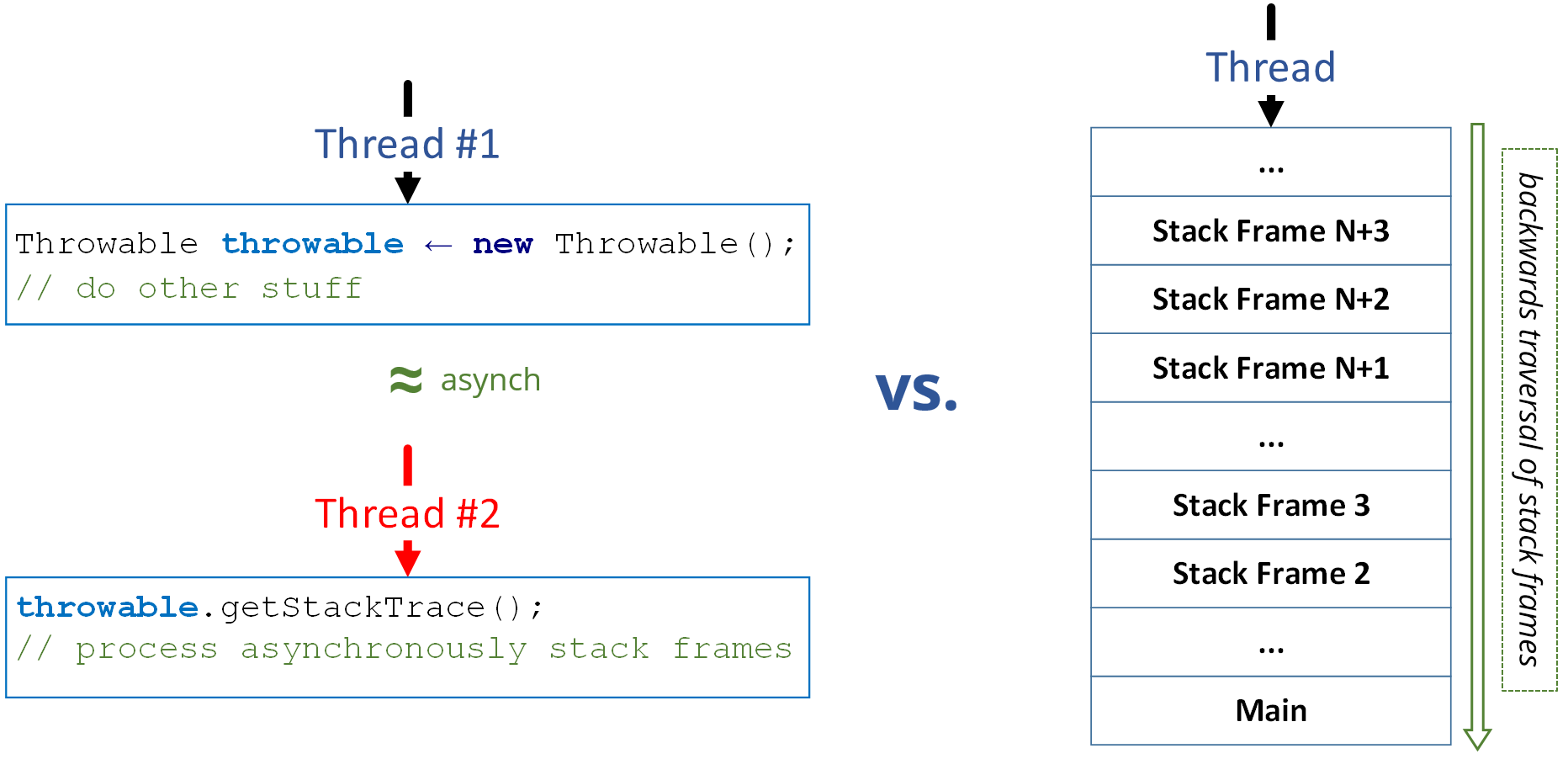

Below is a graphical representation between the approach of generating a Throwable on Thread #1, dispatching it to Thread #2 for asynchronously processing the frames (i.e. minimizing the cost on Thread #1, hence improving the response time) versus StackWalker API which synchronously traverses backward the frames.

This time we are not anymore interested in only the top/current stack frame, but in iterating through more frames (using StackWalker API) to better spot the difference between these two approaches.

@BenchmarkMode(Mode.AverageTime)
@OutputTimeUnit(TimeUnit.NANOSECONDS)
@Warmup(iterations = 5, timeUnit = TimeUnit.NANOSECONDS)
@Measurement(iterations = 5, timeUnit = TimeUnit.NANOSECONDS)
@Fork(value = 3, warmups = 1)
@State(Scope.Benchmark)
public class StackWalkerJmh {

    @Param({ "1", "10", "100", "1000" })
    int stackDepth;

   public static void main(String[] args) throws RunnerException {
        Options opt = new OptionsBuilder()
            .include(StackWalkerJmh.class.getName())
            .build();
        new Runner(opt).run();
    }

    // Throwable
    @Benchmark
    public Throwable justThrowable() {
        // return just Throwable for later processing
        return recThrowable(stackDepth);
    }

    private Throwable recThrowable(int depth) {
        if (depth == 0) {
            return new Throwable();
        }
        return recThrowable(depth - 1);
    }

    // Thread::getStackTrace

    @Benchmark
    public StackWalker.StackFrame stackWalker() {
        // return backwards Nth StackFrame
        return recStackWalker(stackDepth);
    }

    private StackWalker.StackFrame recStackWalker(int depth) {
        if (depth == 0) {
            return getBackNthStackFrame_StackWalker(stackDepth);
        }
        return recStackWalker(depth - 1);
    }

    private StackWalker.StackFrame getBackNthStackFrame_StackWalker(int numberOfSkippedFrames) {
        return StackWalker.getInstance()
            .walk(stream -> stream.skip(numberOfSkippedFrames - 1).findFirst())
            .orElseThrow(NoSuchElementException::new);
    }
}

I have tested above benchmark with JDK9.

Benchmark             (stackDepth)     Mode     Cnt         Score   Error     Units

justThrowException              1      avgt      15     1,389.484 ± 43.495     ns/op
justThrowException             10      avgt      15     1,734.414 ± 40.764     ns/op
justThrowException            100      avgt      15     6,156.689 ± 70.498     ns/op
justThrowException           1000      avgt      15    50,640.416 ± 2460.680   ns/op

stackWalker                     1      avgt      15     1,722.361 ± 45.172     ns/op
stackWalker                    10      avgt      15     5,478.675 ± 65.769     ns/op
stackWalker                   100      avgt      15    33,282.748 ± 444.218    ns/op
stackWalker                  1000      avgt      15   30,7625.182 ± 8019.638   ns/op

Tests triggered on my machine (CPU: Intel i7-6700HQ Skylake; MEMORY: 16GB DDR4 2133 MHz; OS: Ubuntu 16.04.2)

Conclusions after this test scenario:
  • asynchronously processing Throwable frames (i.e. in another thread) is way faster than even using StackWalker API!
  • in this approach, the load on Thread #1 is mitigated (i.e. it only pays the cost of creating the Throwable instance and filling in the stack trace, without generating the stack trace elements which is even more costly), hence giving a room for other things within the normal control flow of the application

As you might notice, this mechanism intentionally avoids the cost of generating the stack trace elements, leveraging it to another thread (e.g. Thread#2::getStackTrace() ), hence improving the response time for Thread #1. This trick is suitable for cases where the semantics of the business logic could be decoupled from frames processing. What it really matters is just to create the Throwable frames and to dispatch them for an asynchronous and complementary processing (e.g. logging, monitoring).

Final Conclusions

  • when there is a strong need to synchronously process stack frames within the caller thread (i.e. business logic depends on it, hence it cannot be decoupled), StackWalker API offers better performance in comparison to Throwable::getStackTrace or Thread::getStackTrace APIs
  • if the stack frames can be asynchronously processed and it does not influence the normal control flow of the application, StackWalker API might not be the best fit! In such case, it looks more optimal, from a performance standpoint, to just create the Throwable frames and to process them on a different thread.

Authorionutbalosin

Software Architect, Technical Trainer
